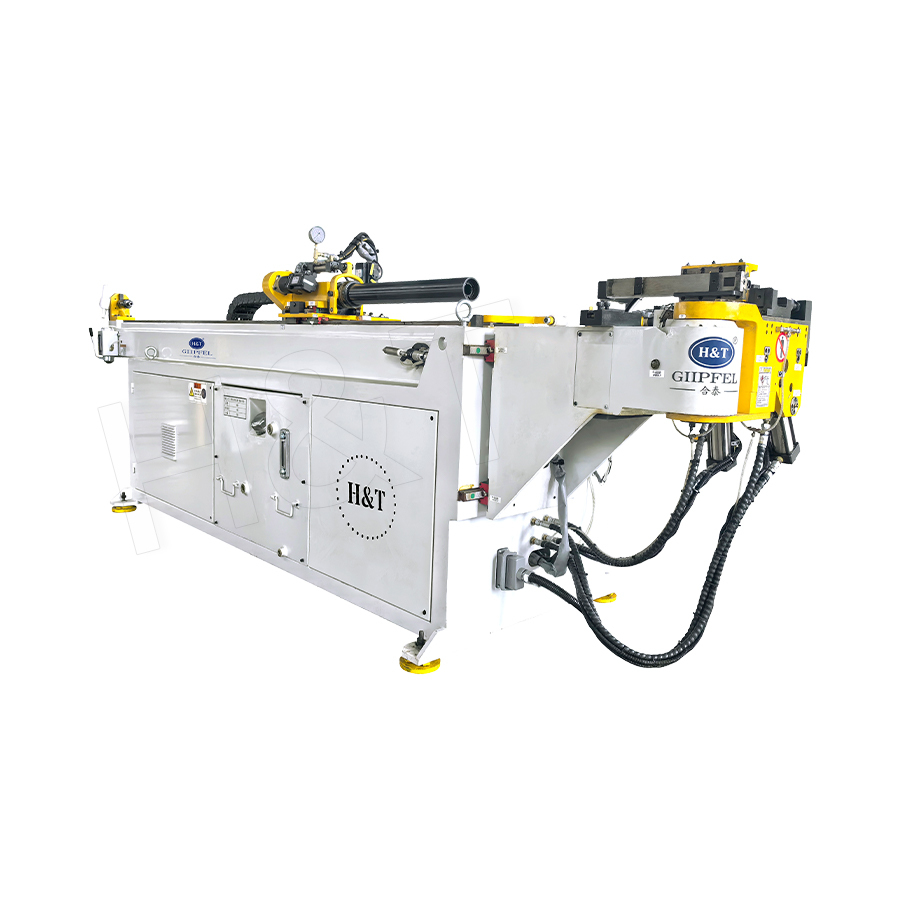

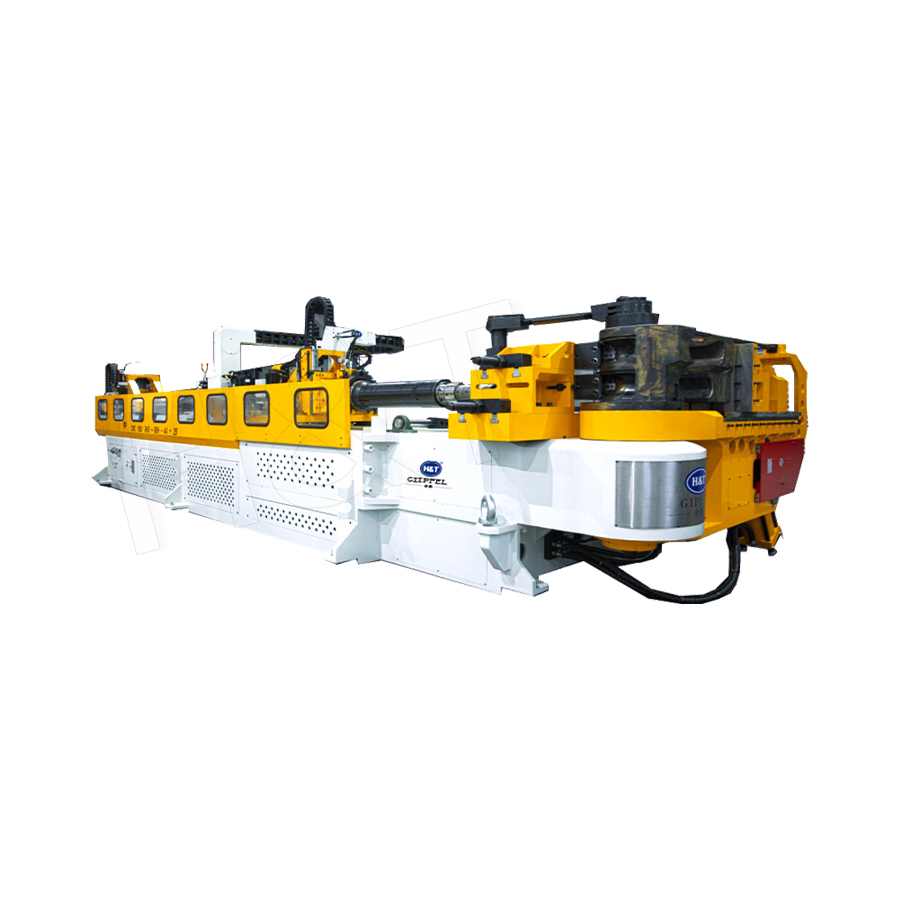

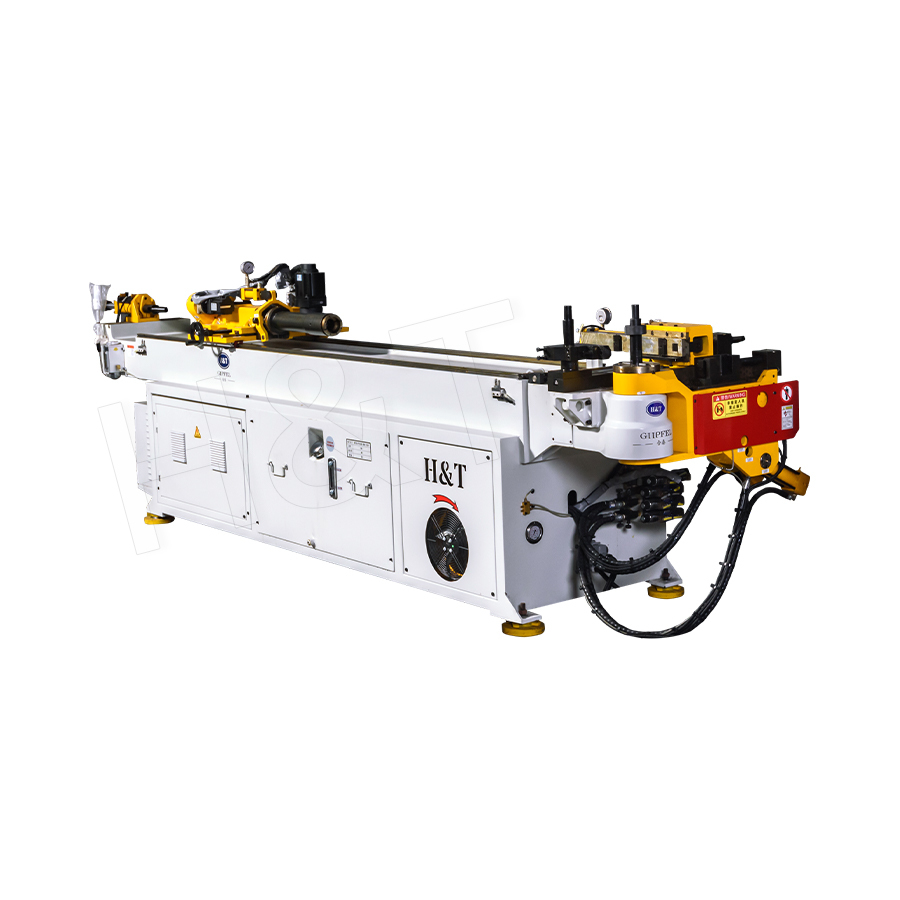

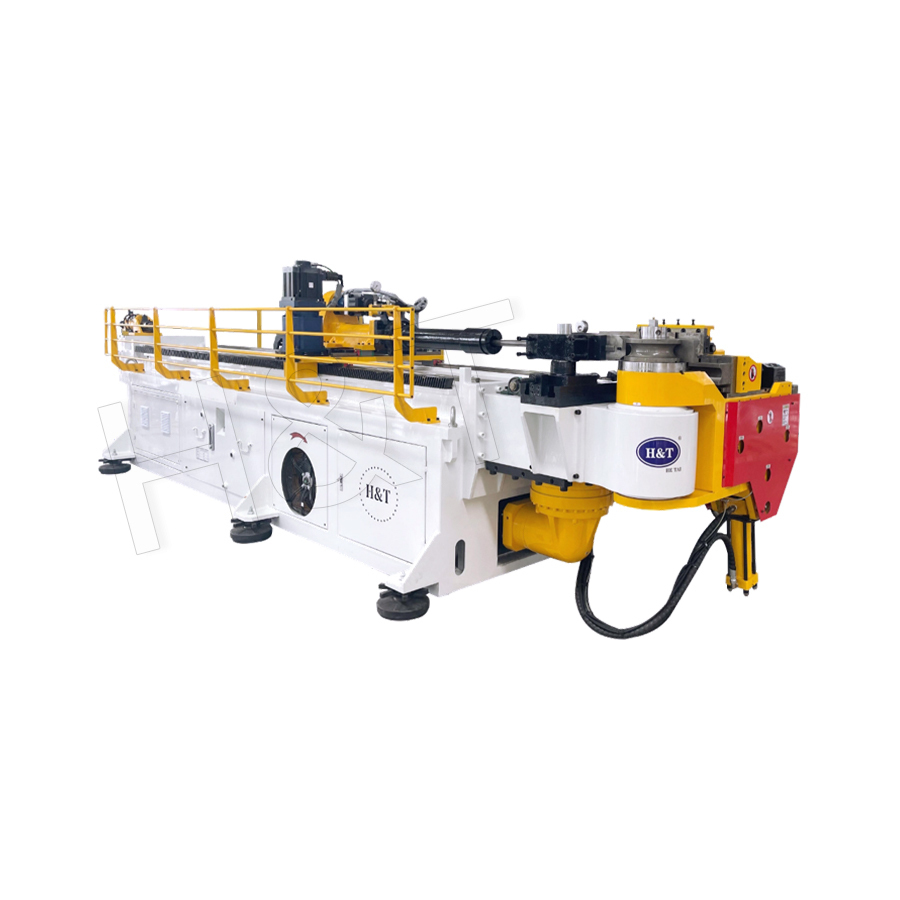

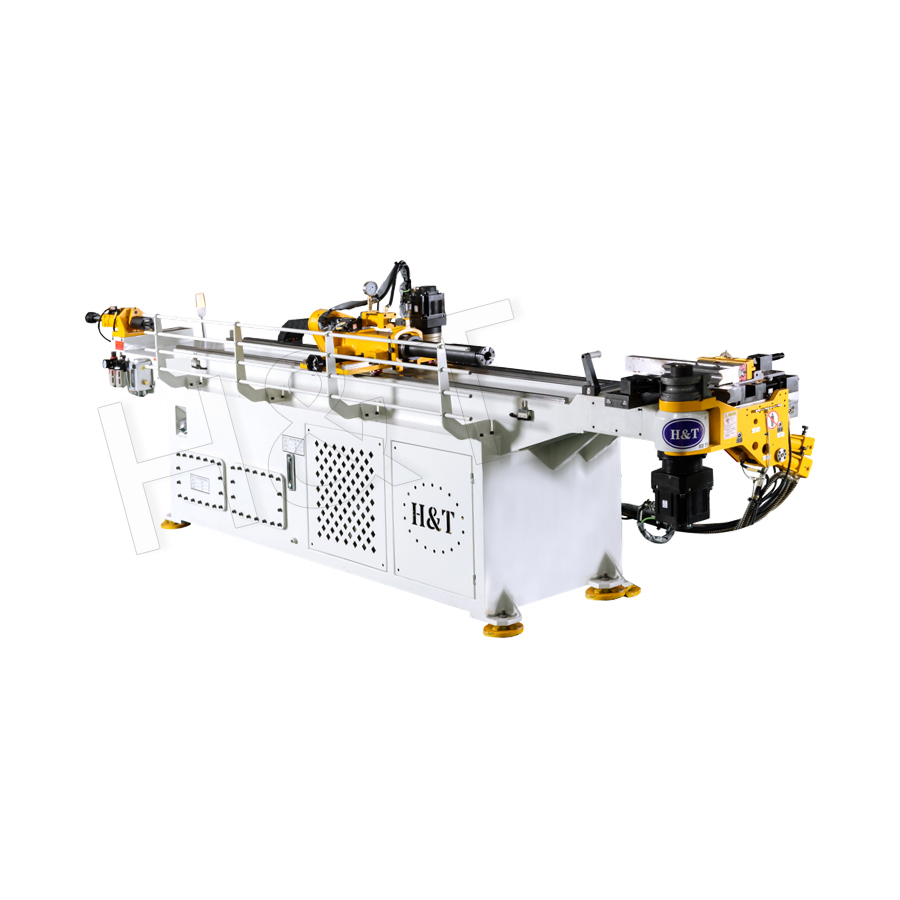

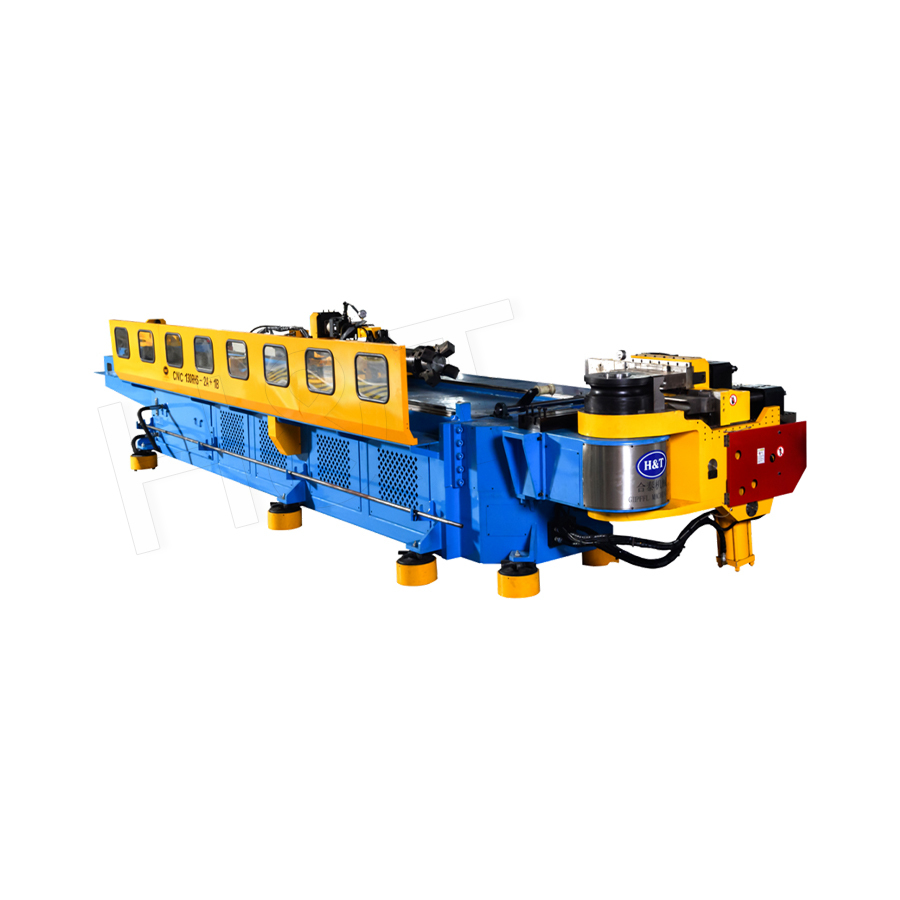

Single-stack Die

The single-stack die is a high-efficiency, precision pipe forming equipment designed for small-batch, diversified single-piece production. It adopts a single-head + single-layer mold structure, combined with a CNC/PLC control system, to achieve fully automatic and fully programmable pipe bending.

Advantages:
1. Fully Automated Production: Through pre-programmed process files, it achieves one-time loading, one-time positioning, and one-time bending, significantly reducing labor costs and increasing production capacity.
2. Energy Saving and Environmental Protection: The hydraulic system uses a variable frequency pump + energy recovery valve, with a peak power of only 150kW, reducing energy consumption by more than 30% compared to traditional mechanical pipe bending machines.
3. Reliable Hydraulic System: Dual-circuit high-pressure hydraulic system equipped with overpressure, overcurrent, and temperature protection, ensuring safe and reliable operation and a long maintenance cycle (average maintenance every 12 months).
4. Working principle: The hydraulically driven pipe bending head, in conjunction with a high-strength mold, completes the plastic deformation of the pipe under the precise instructions of the CNC system. The bending process involves no cutting or heat treatment, thus maintaining the original mechanical properties of the pipe.
